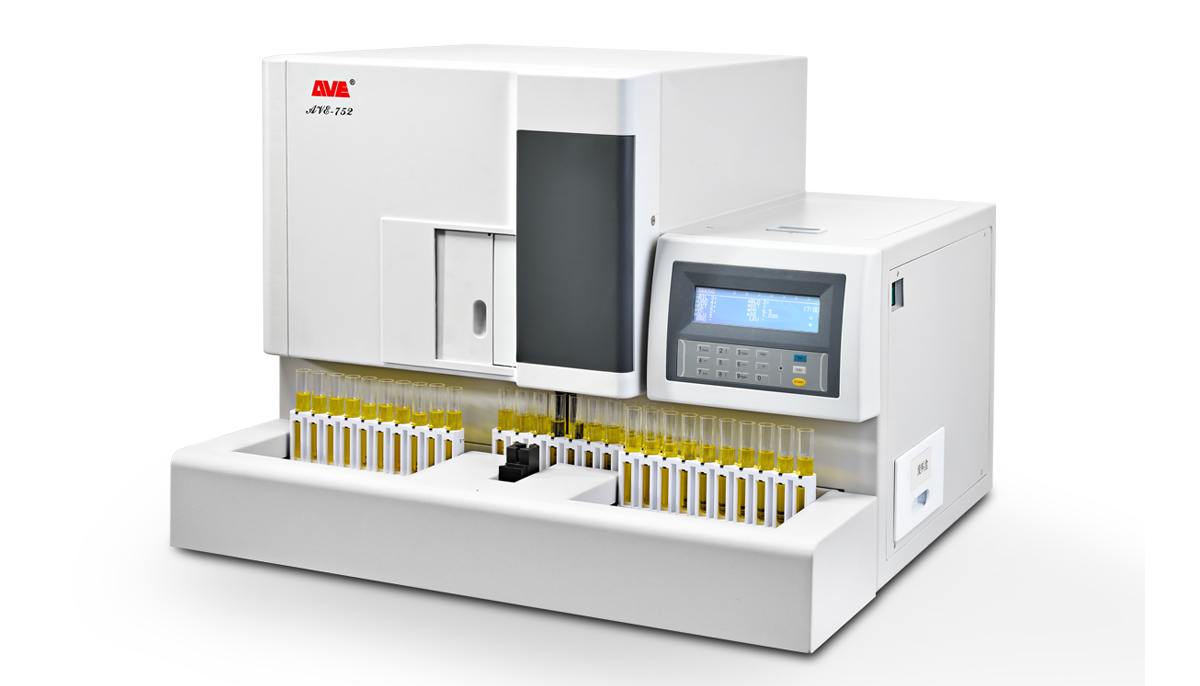

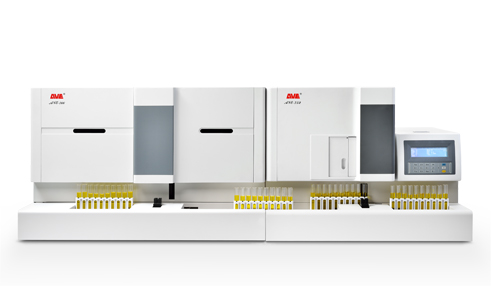

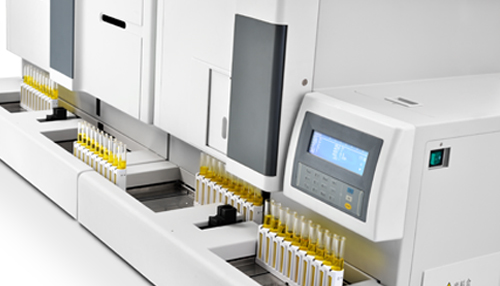

Fully Automated Urine Analyzer

CE Marked;Compatible with AVE-763 sereis,764 series, and 766 Automated Urine Formed Elements Analyzer and customized for laboratories at all levels of hospitals.

Urine Chemistry Parameters: 11,12,14 urine chemistry parameters are measured, depending on various test strips types;
Physical Parameters: Color, turbidity and conductivity are measured as well.


Reflectance Photometer

Fast, reliable and cost-effective;
Innovative cassette strip loading system;
Unique sample sprinkling technology to avoid un-detection and interference;
Separate module for measuring urine physical parameters*;
Automatic quality control analysis and self-check;
Optimized all-round washing technology to prevent cross contamination;
Unidirectional or bidirectional interface with LIS/HIS;
Software and language upgrades by USB stick.

*available soon

Technilcal Parameters

Evaluated parameters:  Bilirubin (BIL), Urobilinogen (URO), Ketones (KET), Ascorbic acid (AsA), Glucose (GLU), Protein (PRO), Blood (BLD), pH (PH), Nitrite (NIT), Leukocytes (LEU), Specific gravity (S.G.), Microalbumin (ALB)*, Creatinine (CRE)*, Calcium (Ca)*;

Memory Capacity:  Min. 20,000 results

Test Strips adding capacity:  200 strips

Throughput:  100~240tests / hour

Min. Sample volume:  2.0 ml

Max. Sample loading number:  6 racks of 10 tubes

Built-in Barcode reader:  Yes

Printer:  Laser, external, optional

Interfaces:  USB, RS232, LAN

Dimensions (main unit):  680 x 650 x 545mm (L x D x H)

Weight (main unit):  53kg

Power (main unit):  100-240V~50/60Hz, 300VA

*available soon
