Integrated Urinalysis Analyzer

Integrated Urinalysis Analyzer

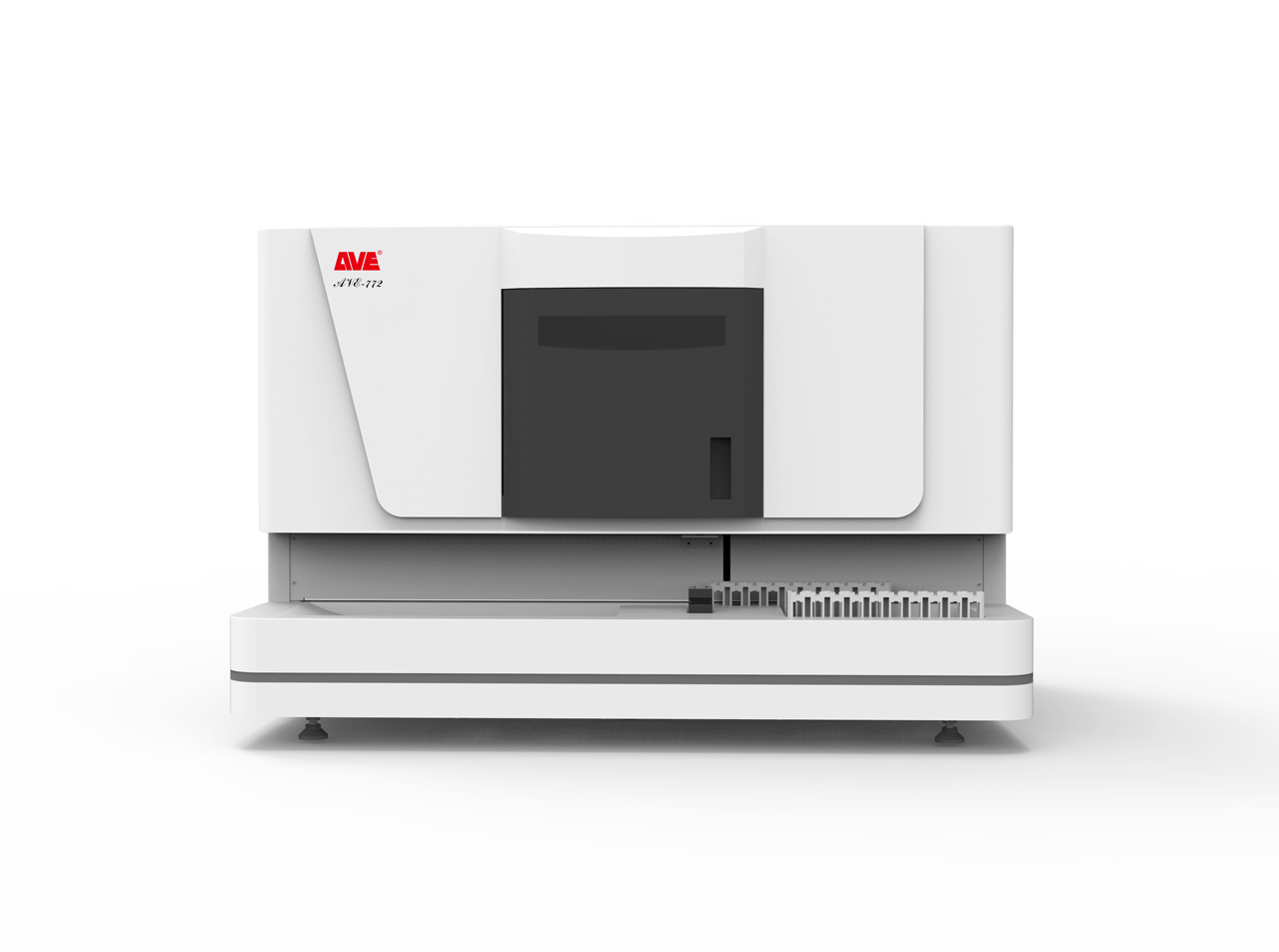

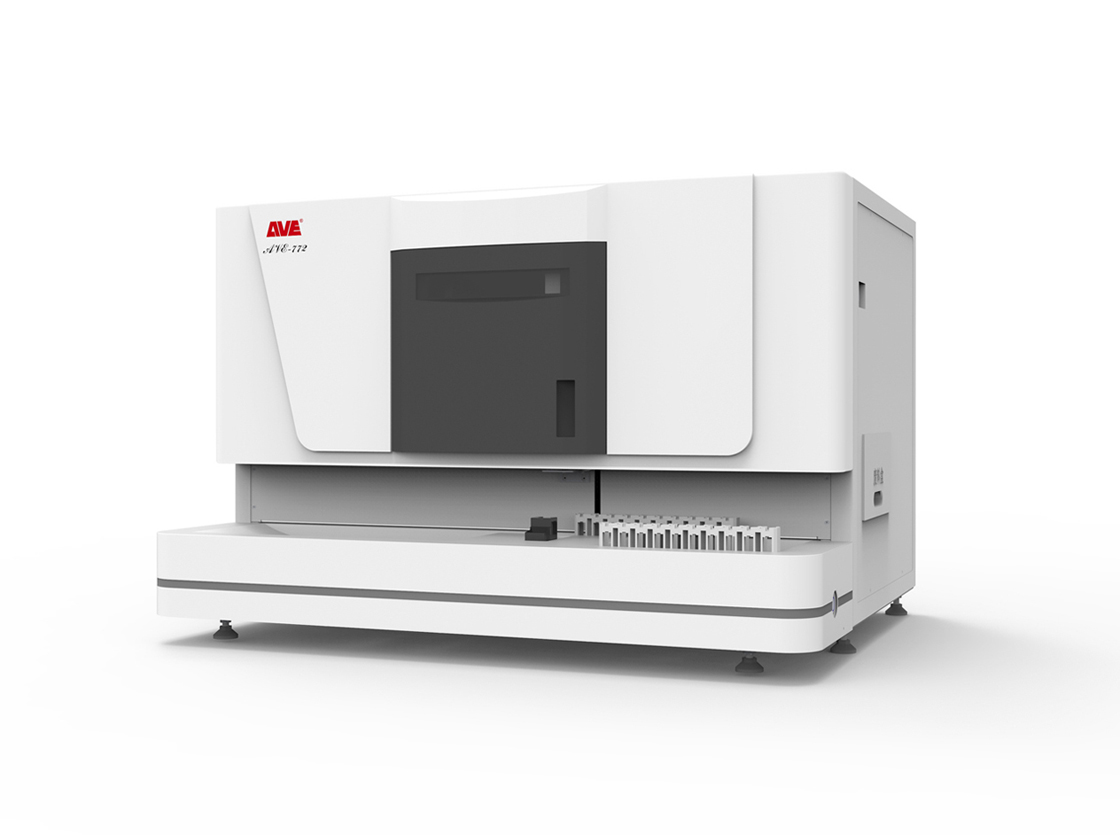

The AVE-772 Integrated Urinalysis Analyzer is combination of Urine Formed Elements Analyzer and Urine Analyzer.



l Chemistry Measurements: 11 , 12, 14 parameters available
l Microscopy Measurements: RBC, WBC, Epithelial Cells, Crystal, Casts, Mucus, Yeast , Bacteria, etc. Further sub-classification is available  with  manual on-screen verification

l RBC Morphological Analysis: automatic analysis and generated with diagrams and images
l Physical Measurements: color, turbidity, specific gravity and conductivity.
l Extensional Measurement: pleuroperitoneal fluid , cerebrospinal fluid, gastric fluid , etc

  l Physical measurement: color, turbidity measured by RGB sensor; specific gravity measured by refractometer; conductivity measured by electrode method
l Chemistry measurement: colorimetry
l Microscopy measurement: Machine Vision Technology (Automated Morphological Microscopy)

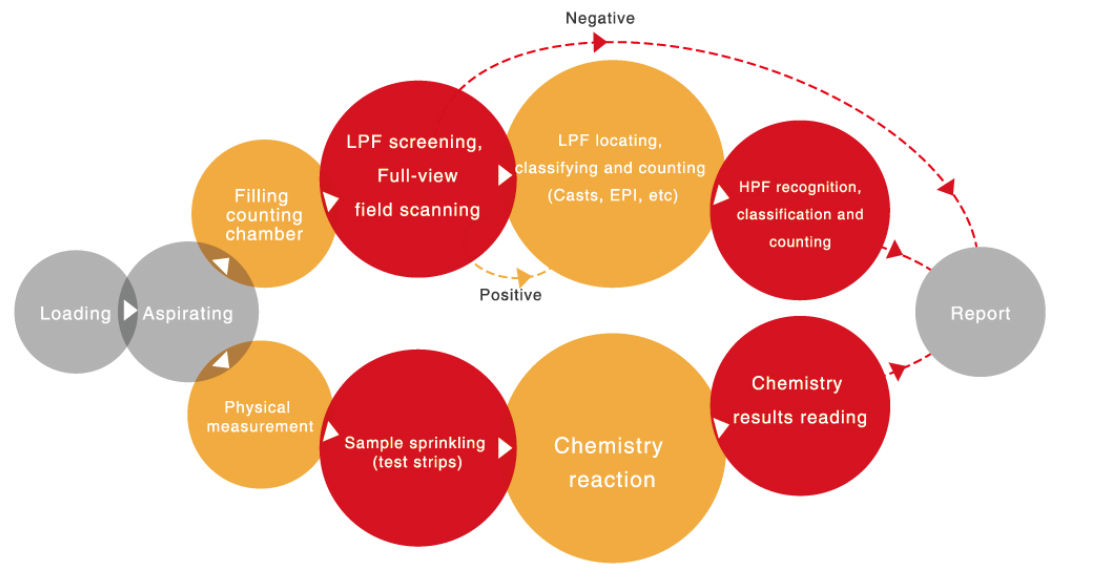

l Unique design with both Chemistry and Microscopy measurements integrated, which makes both measurements done by sampling once
l Measurement Modes Optional: chemistry, microscopy, or chemistry+microscopy.

Physical Measurement

l Independent PMC module automatically measures color, turbidity, specific gravity and conductivity.
l More accurate SG result measured by refractometer

Chemistry Measurement

l Patent strip feeding device
l Innovative sample sprinkling technology to avoid undetecllon
l Test results traceable with images

Microscopy Measurement

l Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine
l Uncentrifuged urine sample at cutoff concentration level of 3-5 cell/ul are detectable
l precise morphological analysis of RBC helps to determine the source of heπ1atuna
l Standardized and confirmatory report with both images and diagrams available. Pop ups indicate on-screen verification with no need to redo the measurement
l Self-learning function continuously improves the recognition accuracy.
l Un-centrifuged urine microscopy reference values available
l CFDA approved quality controls of four levels available


Technilcal Parameters

l Throughput:  Chemistry     Microscopy      Chem+M1cro
                              240T /H        120T /H          120T /H

l Min. sample volume: 5ml, 3ml intake for chemistry measurement and 0.5ml for microscopy measurement

l Sample preparation: native sample

l Built-in barcode reading: Yes
l Counting Chamber: 3 channel
l Detection rate: ≥98% for sample at concentration of 5 cells/ul

l Accuracy: For chemistry measurement, comparing to reference solution, results are within tolerance of one level or no false positive and negative; for microscopy measurement, ≥95%
l Repeatability: For chemistry measurement , CV≤ 1%; for microscopy measurement, CV ≤7%
l Carryover: At concentration of 4600-5400 cells/ul≤ 1cell/ul,At concentration of 9200-10800 cells/ul≤2cells/ul

l Verification: Full-view field images + segmented images
l Report: comprehensive results with images and diagrams
l Sampler: loading capacity of 60 samples

l Strip tank capacity: 200 strips
l STAT: available
l Data interface: bidirectional
l LIS/HIS connection: available
l Results storage: ;;. 200,000 results
l Dimensions: 825×650×545mm' Weight: 73kg
