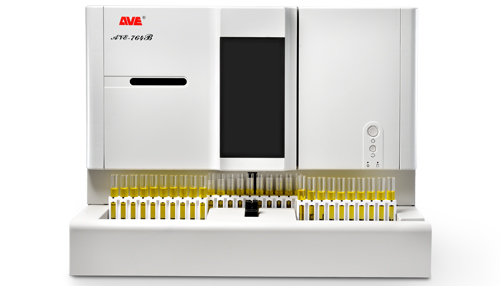

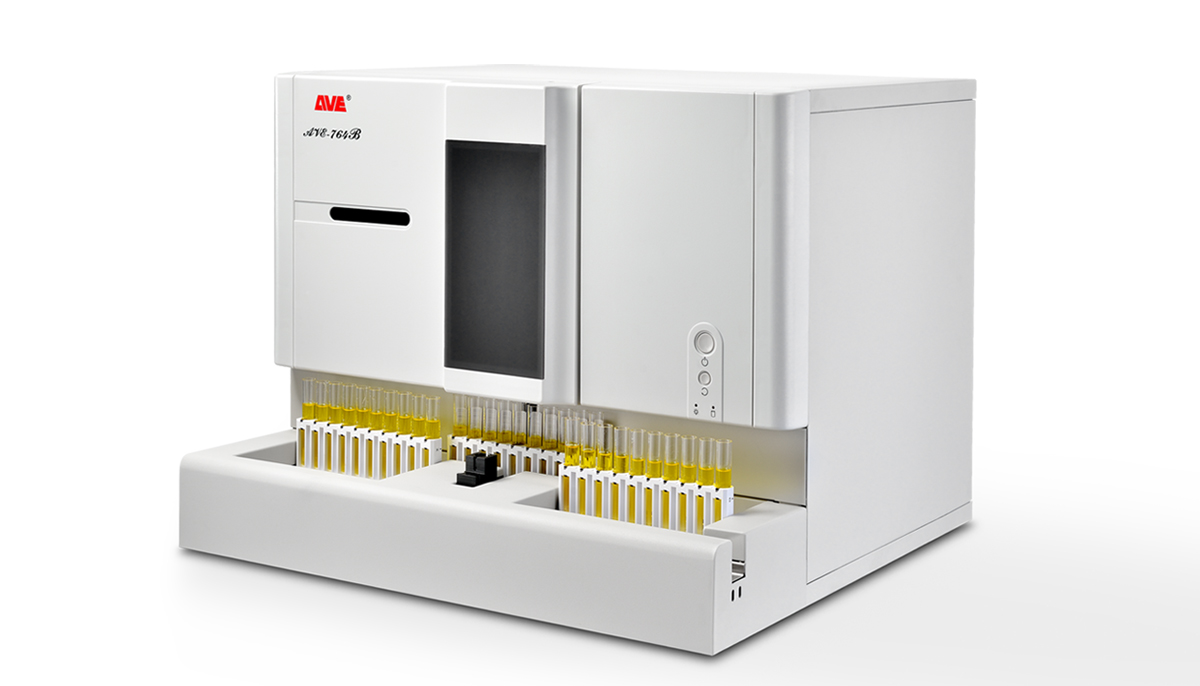

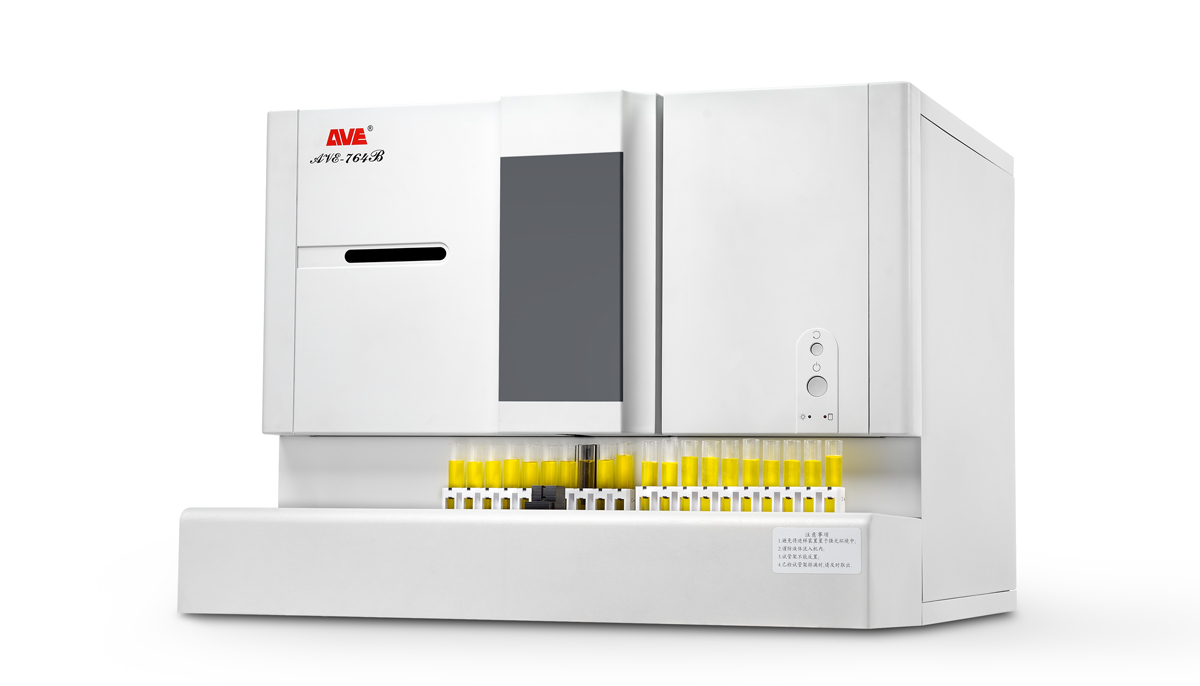

AVE-764 Series

Urine Formed Elements Analyzer

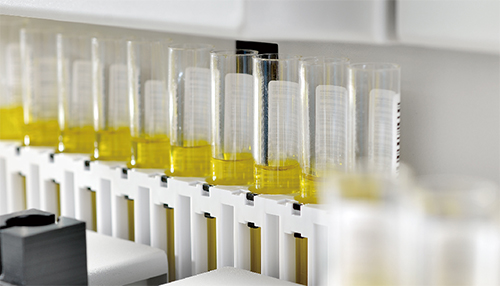

CE Marked;10-tube rack forwarding sampler, compatible with AVE-752 Automatic Urine Analyzers and customized for medium/large-sized laboratories.


*  All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available and real images and statistical diagrams displayable and printable;

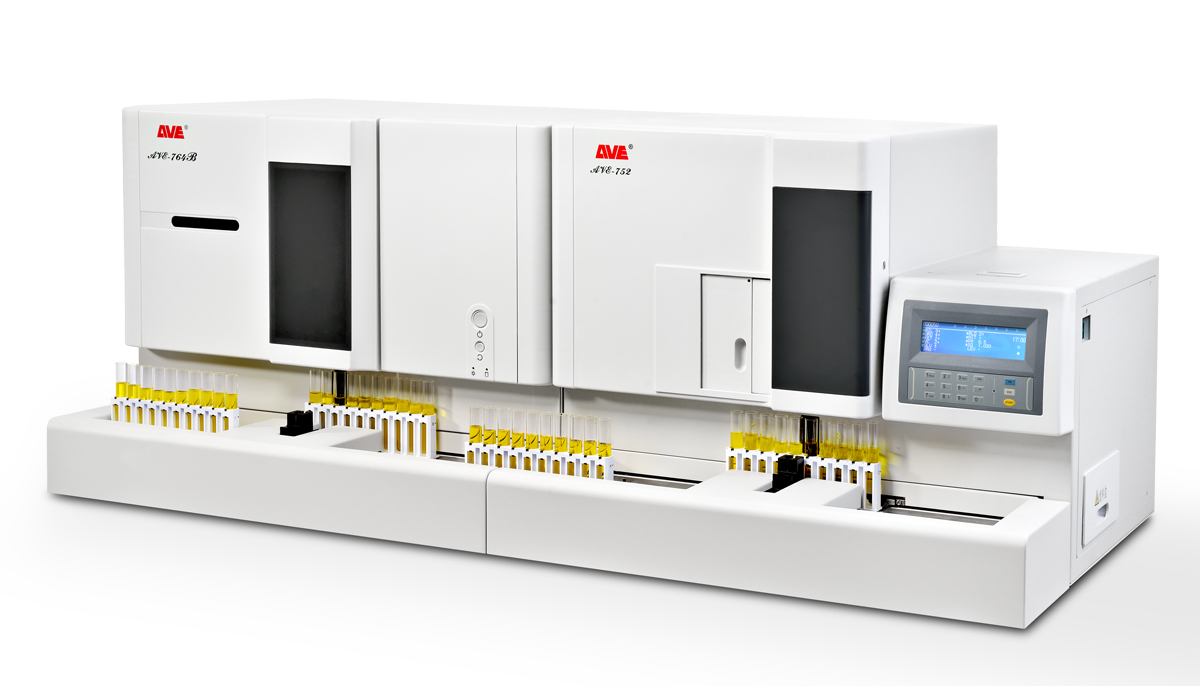

*  It is connectable to Automatic Urine Analyzers and a comprehensive report is generated;

*  Urine physical indexes are reportable;



Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them.

*  Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
*  Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable;
*  Automatic sampling system with liquid level detection;
*  Automatic recognition, classification and quantitation of urine formed elements;
*  Precise erythrocytes morphological analysis helps to determine the source of hematuria;
*  Real whole view-field microscopic images of urine formed elements are presented;
*  Automatic notice of verification and on-screen verification, no additional microscopic review needed;
*  Characteristic parameters of urine formed elements are available for further clinical research;
*  Standardized and confirmatory analysis report with both images and diagrams available;
*  Self-learning ability continuously improves the recognition accuracy;
*  Unique morphological quality control available;
*  Unidirectional or bidirectional interface with LIS/HIS;
*  Software and language upgrades by USB stick;
*  Combinable with automatic urine analyzers, customized for medium or large-sized laboratories;

Technilcal Parameters


Auto-detected Urine Formed Elements:  Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC).Further sub-classification is available with manual on-screen verification!

Magnification:  Standard 10X & 40X images

Memory:  Min. 200,000 results (including all images captured)

Min. Sample volume:  2.0 ml

Sample level detection:  Yes

Max. Sample loading number:  6 racks of 10 tubes

Throughput:  Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)

Built-in Computer:  Yes

Built-in Barcode reader:  Yes

Printer:  Laser, external, optional

Interfaces:  USB, RS232, LAN

Dimensions (main unit):  680 x 650 x 545mm (L x D x H)

Weight (main unit):  59kg

Power (main unit):  100-240V~50/60Hz, 450VA
